DEFIBRILLATOR
Manufacturer:
Meditech Global
(Japan)
Model: Defiexpress

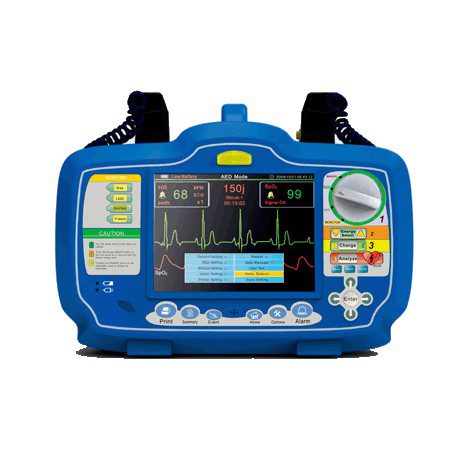

Defibrillator Monitor DefiExpress Is Designed For Resuscitation And Electro Pulse Therapy Of Acute And Chronic
Cardiac Arrhythmia As Well As For External, Trans Esophageal, Endocardial Pacing. It Is Used In Hospital, Cardiology
Clinic And Equipping Emergency And Medical Assistance Teams. The Device Is Certified For The Conformance With
Requirements Of Directive 93/42/EEC
Key Features
-
LCD display Color TFT
-
Display size 152х91mm
-
Diagonal 7 inch
-
Resolution 800 х 640 pixels
-
Time of monitor restoration after defibrillation, no more than 6 sec
-
Continuous operation from the 220V power supply
-
The battery pack built om
-
The direct current power supply
-
ECG channel 3/6/12 ECG leads
-
NIBP channel taking BP automatically (from 20 to 280 with the ±3 error)
-
Maximum pressure protection over 330
-
SpO2 channel range 0-100%
-
SpO2 readings range 75-100% with ±3% error
-
ECS channel external, endocardial, and transesophageal
-
ECS channel Fixed, Overdrive, and Demand modes
-
Frequency setting from 40 to 250 pulse/min
-
Pulse duration setting from 20 to 40 msec
-
Pulse current setting from 10 to 180 mA for the external stimulation
-
Disposable electrodes for ECG monitoring
-
Defibrillation pulse is a biphasic and asymmetrical pulse of a trapezoid shape with the ratio of negative to positive current half-waves of (0,5+0,1)
-
Power shutdown at the patient's body resistance of lower than 12 Ohm and higher than 200 Ohm
-
Automatic limitation of defibrillation current at level of (30+10) А
-
The patient's body resistance of lower than 25 Ohm
-
Automatic stabilization of the output pulse parameters depending on the patient's chest resistance ranging from 25 to 175 Ohm
-
Voice and visual support of the operator's actions and device operation available
-
Display Color TFT display 7″ (800×640 pixels)
-
Built-in thermal printer available
-
Charging unit available
Pulse Physiologically optimal bipolar pulse with automatic correction of duration and shape depending on the
patient impedance.
Defibrillation pulse energy, J For adults 5/10/25/50/75/100/150/200/250/300/360 (additional function of power accumulation over 200J, with the adult electrodes)
For children 5/10/25/50/75/100/150 (shut-down of power over 150J, when working in the children's mode)
Time of energy accumulation, no more than, sec 200J 6sec 360J 10sec
Number of defibrillation pulses from the fully charged storage battery, no more than 200J 70 pulses 360J 40 pulses
Time of holding accumulated energy with indication of remaining seconds, with subsequent automatic reset of the
stored energy to the internal load, no more than, sec 30 sec
